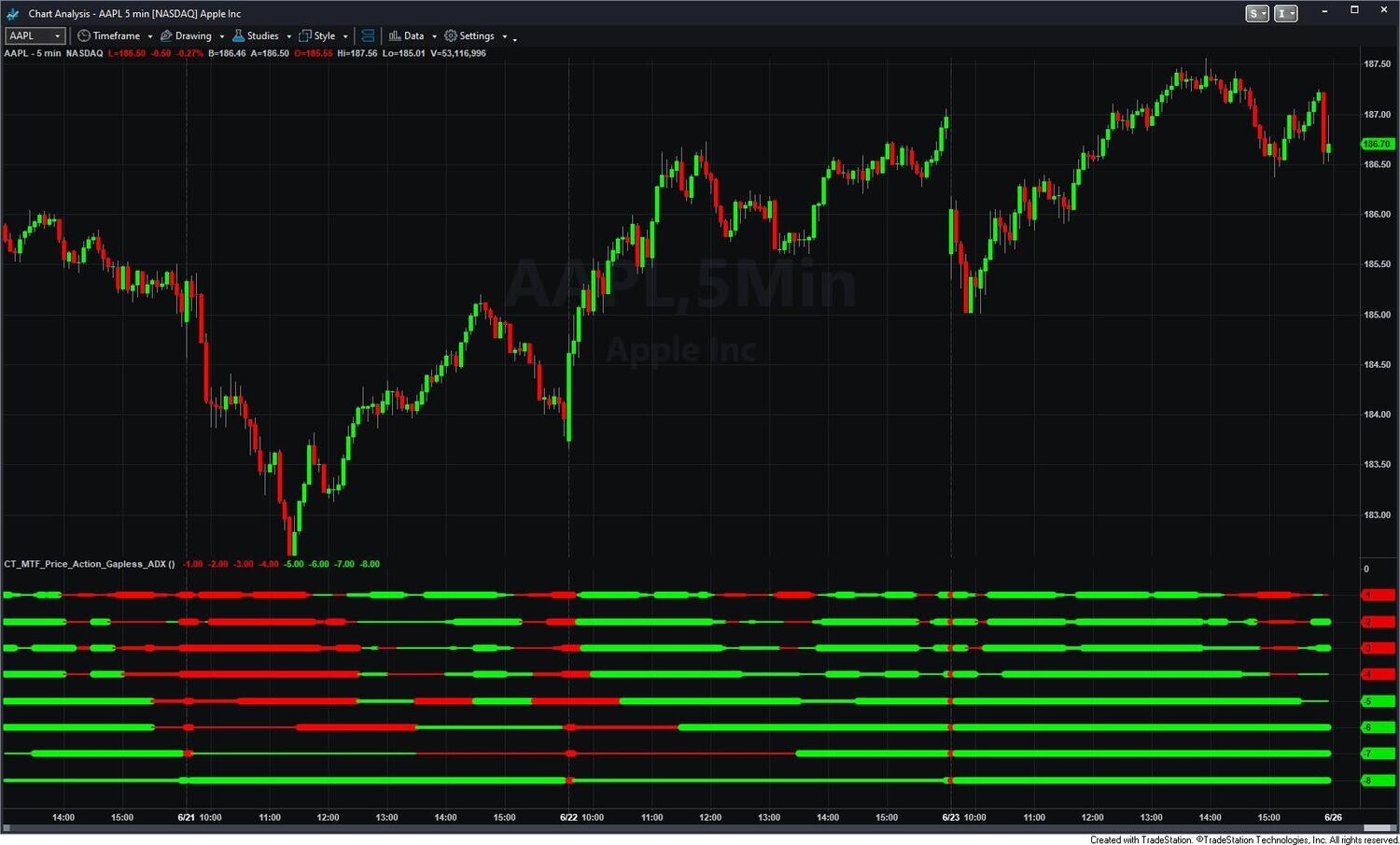

The MTF ADX Indicator displays trend direction and strength across eight timeframes as a compact stack of color-coded bars in a sub-panel below your TradeStation price chart. Color encodes direction — green for bullish, red for bearish. Bar width encodes conviction — a full-width bar means all five internal trend measurements agree at that timeframe; a narrow bar means only a bare majority agree. One glance at the sub-panel tells you whether the market is trending or conflicted across every significant timeframe at once.

Despite its name, this indicator does not use the traditional ADX formula. Instead it uses the SP Harmony scoring system — the same engine behind the CT_MTF_Price_Action family. For each timeframe, five Super Smoother calculations at Fibonacci lengths (13, 21, 34, 55, and 89 bars) are applied to the gapless close price. Their individual directional signals are summed into a score from −5 to +5. A score of +5 means all five are rising — maximum bullish alignment. −5 means all five are falling. This approach responds faster than traditional smoothed ADX and eliminates overnight gap distortions through gapless price accumulation.

The eight timeframes displayed are: current chart interval, 15-minute, 20-minute, 30-minute, 60-minute, 120-minute, 240-minute, and Daily. All higher-timeframe bars are synthesized in real time from the current chart — no additional data feeds or chart windows required. Valid on intraday time-based charts from 1-minute through 60-minute only.

How the MTF ADX Indicator Works

For each of the eight timeframes, the indicator applies five Super Smoother calculations to the gapless close price — Fibonacci lengths of 13, 21, 34, 55, and 89 bars. Each calculation is compared to its prior value to determine direction: rising produces +1, falling produces −1. The five signals are summed into an SP_Dir score from −5 to +5:

• +5 — all five lengths rising; maximum bullish alignment
• +3 to +4 — strong bullish trend
• +1 to +2 — mild bullish lean
• 0 — no dominant direction; flat or transitioning
• −1 to −2 — mild bearish lean
• −3 to −4 — strong bearish trend
• −5 — all five lengths falling; maximum bearish alignment

Bar width equals the absolute value of the SP_Dir score, so a full-width green bar means a high-conviction uptrend with no internal divergence. Watch for width expansion as a sign of a trend gaining strength, and width contraction as an early warning of potential weakening — often visible before any color change occurs.

Higher-timeframe bars are synthesized from the current chart's intrabar data using clock-time boundary detection, so all eight timeframes update in real time without requiring additional data feeds.

Who Is This Indicator For

The MTF ADX Indicator is built for TradeStation traders who rely on trend identification and want a faster, multi-timeframe alternative to the standard ADX. It works on any liquid intraday instrument:

• E-mini S&P 500 (ES), Nasdaq 100 (NQ), and other equity index futures
• Energy and commodity futures including crude oil (CL) and gold (GC)
• Forex currency pairs across all major sessions
• Individual stocks and ETFs

What Is Included in the Download

• MTF ADX Indicator EasyLanguage (.eld) file for TradeStation
• Step-by-step installation guide (PDF)
• Recommended settings for futures, forex, and stocks
• Access to our Learning Center video walkthrough
• Email support from our team

System Requirements

• TradeStation 10 or later (including TradeStation Web Trading)
• Compatible with TradeStation Global
• Valid on intraday time-based charts from 1-minute through 60-minute only (daily, weekly, tick, volume, and range charts are not supported)
• No additional data subscriptions required beyond your standard TradeStation data plan

Frequently Asked Questions

How does this differ from the standard ADX in TradeStation?
TradeStation's built-in ADX uses a smoothed moving average of directional movement on a single timeframe, which lags price significantly. The MTF ADX uses SP Harmony scoring — five Super Smoother calculations summed across eight timeframes simultaneously — giving you a faster, multi-timeframe view of trend conditions with the overnight gap distortion removed.

Does this indicator repaint?
No. All calculations are based on confirmed closed bars. Once a bar closes, the SP_Dir score for that timeframe is fixed.

Which timeframes are displayed?
The eight timeframes are fixed: current chart interval, 15-minute, 20-minute, 30-minute, 60-minute, 120-minute, 240-minute, and Daily. Higher-timeframe bars that are redundant with your current chart interval are automatically suppressed. For example, on a 15-minute chart, the 15-minute and lower bars collapse into the current-interval row.

Does it work alongside the Fractal Channel Indicator?
Yes — and this is a natural combination. The MTF ADX tells you the trend direction and strength across all timeframes; the Fractal Channel tells you where the key support and resistance levels are within that trend. When the MTF ADX shows green across multiple timeframes and price is above the Fractal Channel support level, you have a high-conviction long setup.

How do I install it in TradeStation?
After purchase you will receive an EasyLanguage (.eld) file. Import it via File > Import/Export > Import EasyLanguage. Full instructions are included in the download. Most traders are up and running in under 10 minutes.

What is your refund policy?
All sales are final. We encourage you to review our product videos and chart examples in the Learning Center before purchasing. If you have a technical issue after purchase, our support team is here to help.

Is there a free trial?
We do not currently offer a free trial, but our Learning Center includes detailed video walkthroughs and chart examples so you can see exactly how the indicator performs before purchasing.
